LX Series

We have refreshed and upgraded our Premium thermostats. All Premium models now accept our Wi-Fi module to give you control of your comfort from anywhere

Residential Thermostats


Residential Models
  • S1-THSU32HP7S
  • S1-THSU32P7S
  • S1-THSU21P1S

The new LX Series of residential thermostats offer simple as you want operation for the most basic users along with the new option of adding connectivity through Wi-Fi. When the optional Wi-Fi module is added to the thermostat, users have the ability to use the free Skyport Cloud Services on their mobile devices. The thermostats also have a local API so that they may interface with many of the most popular home automation systems.

Under the front cover users will find more options for complete comfort and control. From here you can access the Fan, Program, and Outdoor temperature buttons. Additional advanced options and setup buttons are discreetly located under a concealed drop down door.

The LX Series of thermostats now offers OpenADR 2.0b compliance to make the thermostats eligible for Utility incentives*. The thermostats also meet the stringent requirements of California’s Title 24*.

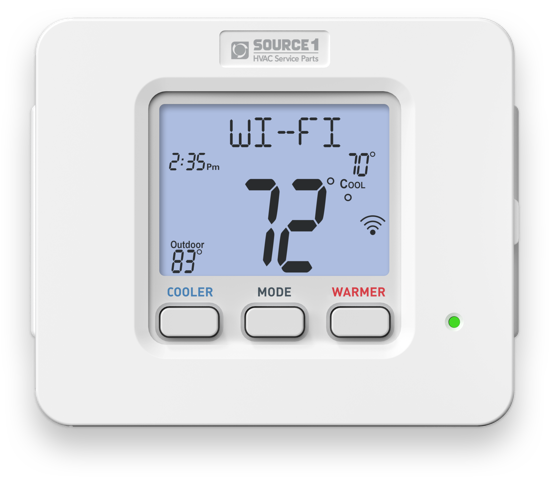

All LX Series thermostats come equipped with a scrolling backlit display that can be adjusted for different lighting requirements, such as a night-light in a dark hallway, or can be turned off entirely for a bedroom location. The thermostat can be set to display English Spanish or French.

The LX Series residential thermostats are able to meet all of your HVAC control needs for Gas/Electric, Heat Pump, and Dual Fuel equipment using industry leading design, features, and pricing

Standard Features

  • Programmable
  • Backlit display
  • Adjustable backlight intensity
  • Customizable scrolling marquee with English, Spanish, and French language support
  • Customizable service alerts and error messages
  • Switchable manual and auto changeover
  • Morning, day, evening, and night time periods
  • Outdoor sensor ready
  • Wireless accessories
  • Service filter reminder
  • UV lamp replacement reminder
  • Aux heat indicator
  • Random start
  • Dual units (F or C)
  • Dry contact input for condensate overflow

Commercial Thermostats


Commercial Models
  • S1-TBSU32HP7S
  • S1-TBSU32P7S
  • S1-TBSU22HNS

The LX series of commercial thermostats can meet all your HVAC control needs from large multi-stage Gas Electric package units to small Heat-Pumps and air handlers. Its universal connections are a perfect fit for any commercial HVAC application.

Three built in password protected security levels and optional locking covers are available for higher grades of protection. With the optional locking cover in place all advanced buttons can be secured under the cover giving the end user only limited operation by 3 simple buttons temperature up, temperature down, and override. Under the front cover users will find more options for complete comfort and control. From here you can access the Fan, Program, and Outdoor temperature buttons. Additional advanced options and setup buttons are discreetly located under a concealed drop down door.

A random start feature is included to help keep the building owners peak usage low on equipment start up, dry contact closures or after a power failure. In the deluxe version of the LX’s thermostat you can also average with up to 9 indoor remote sensors and have an “econ” terminal that will energize any time the LX thermostat is in the occupied mode.

All commercial LX thermostats offer simple as you want operation and a bi-color LED to indicate a cooling or heating demand. They also come switchable from auto-changeover to non-auto changeover, heat only or cool only. This intuitive design is a leader in the industry. Its features and pricing cannot be beat.

Standard Features

  • Programmable
  • Backlit display
  • Adjustable backlight intensity
  • Customizable scrolling marquee with English, Spanish, and French language support
  • Customizable service alerts and error messages
  • Switchable manual and auto changeover
  • Up to 3 Occupied time periods per day
  • Outdoor sensor ready
  • Wireless accessories
  • Service filter reminder
  • UV lamp replacement reminder
  • Aux heat indicator
  • Random start
  • Dual units (F or C)
  • Dry contact input for condensate overflow
Feature THSU32HP7S THSU32P7S THSU21P1S
Backlit display
Adjustable backlight intensity (including NEVER turn on)
10 character 16 segment status line display, adjustable scrolling
Downloadable dealer name/number for service alerts
Installer hidden tests to exercise equipment on installation
Switchable manual or auto changeover
Number of days in time period program 0,1 0,1,5/2,7 0,1,5/2,7
Morning, day, evening, night periods
2 stage heat, 1 stage cool
4 stage heat, 2 stage cool
Adjustable interstage timers/deadbands
Adjustable trailing fan delay after cool or electric heat satisfies
Can set 2nd/3rd/4th stages to remain on until setpoint
Free Cooling
Dual fuel support
Aux heat lockout based on outdoor temp
Heat pump lockout based on outdoor temp
“Programmable output (time/temp/external/free cooling/venting)”
Outdoor sensor ready
Hi/Lo outdoor temp for the day
Control to, or, monitor remote sensor
Can average 1 remote sensor with thermostat
Can average 1 remote sensor with thermostat
Equipped with humidity module
Cool to dehumidify capable
Reheat capable
Security Levels (set point limiting, etc.)
Accepts Wi-Fi Module
Remote wireless temperature sensor (requires Wi-Fi module)
Comfort recovery
Fault input (X/L)
Comfort Alert Ready
Dry contact equipped Condensate overflow Condensate overflow/vacation Condensate overflow/vacation
Service Filter reminder
Humidifier Pad service reminder
UV lamp replacement reminder
Aux heat indicator
Y2 indicator
Programmable fan
Vacation/Holiday mode
Energy watch
Random start
F or C
6 amp outputs G, Y1 G, Y1, Y2 G, Y1, Y2
1 amp outputs W1, W2 W1, W2, W3 W1, W2, W3, HUM, DEHUM, PROG
Feature TBSU22HNS TBSU32P7S TBSU32HP7S
Backlit display
Adjustable backlight intensity (including NEVER turn on)
10 character 16 segment status line display, adjustable scrolling
Downloadable dealer name/number for service alerts
Installer hidden tests to exercise equipment on installation
Switchable manual or auto changeover
Number of days in time period program 0 0,1,5/1/1,7 0,1,5/1/1,7
2 stage heat, 2 stage cool
3 stage heat, 2 stage cool
Adjustable interstage timers/deadbands
Adjustable trailing fan delay after cool or electric heat satisfies
Can set 2nd/3rd stages to remain on until setpoint
Programmable output (time/temp/aux/economizer/error)
Outdoor sensor ready
Hi/Lo outdoor temp for the day
Control to, or, monitor 2nd sensor
Can average 1 remote sensor with thermostat
Equipped with humidity module
Cool to dehumidify capable
Reheat capable
Security Levels (set point limiting, etc.)
Accepts plug-in USB programmer
Accepts RF Module
Remote wireless add-a-thermostat (requires RF module)
Remote wireless temperature sensor (requires RF module)
Comfort call (requires RF module)
Comfort recovery
Fault input (X/L)
Dry contact equipped Condensate overflow/ Force Condensate overflow/Vacation Condensate overflow/Vacation
Service Filter reminder
Humidifier Pad service reminder
UV lamp replacement reminder
Aux heat indicator
Y2 indicator
Smart fan
Vacation/Holiday mode
Energy watch
Random start
F or C
Override Counter
6 amp outputs G, Y1, Y2 G, Y1, Y2 G, Y1, Y2
1 amp outputs W1, W2, HUM, DEHUM W1, W2, W3 W1, W2, W3, HUM, DEHUM, PROG
S1-LXLOCK
Lockring
S1-LXPLATE
Wallplate
S1-ADDWIRE
Add-A-Wire
S1-THSU32HP7S
S1-TBSU32HP7S
S1-THSU21P1S
S1-TBSU32P7S
S1-THSU32P7S
S1-TBSU22HNS
